Item code | Dimensions,mm | Insert | Screw |
Wrench |
Weight (KG) |
||||
---|---|---|---|---|---|---|---|---|---|

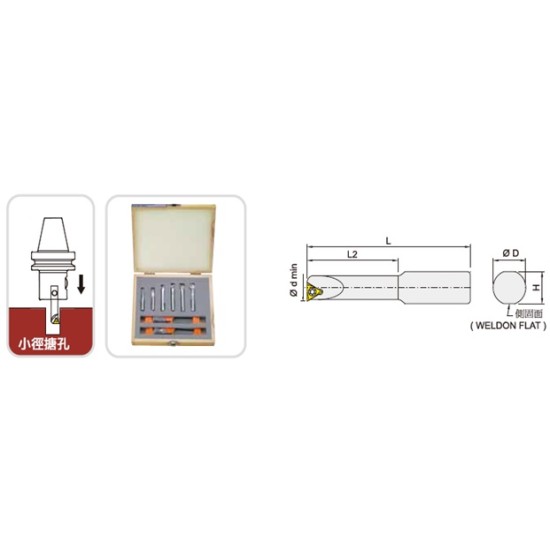

D | Range | L | L2 | H | |||||
BJ12B06-12 | 12 | 6-8 | 64 | 12 | 11 | WB..0601.. | MS2003A | ETF06 | 0.04 |
BJ12B06-24 | 6-8 | 64 | 24 | 0.04 | |||||
BJ12B08-32 | 6-10 | 64 | 32 | TB..0601.. | MS2004A | 0.04 | |||
BJ12B10-40 | 10-12 | 72 | 40 | MS2005A | 0.04 | ||||
BJ12B12-45 | 12-16 | 77 | 45 | TP..0902.. | MS2506A | ETF09 | 0.05 | ||
BJ12B16-45 | 16-20 | 77 | 22 | 0.05 | |||||
BJ12B20-45 | 20-25 | 77 | 25 | 0.05 | |||||
BJ12B25-45 | 25-30 | 77 | 25 | TP..1103.. | MS3008A | 0.06 | |||
※BJ12B-7PCS | BJ12B06-24,BJ12B08-32, BJ12B10-40, BJ12B12-45, BJ12B16-45, BJ12B20-45, BJ12B25-45 | 0.77 |
