Name: BJ10
Brand: 三井
Availability: InStock

BJ10

數量

加入購物車

立即購買問問題

商品收藏商品比較

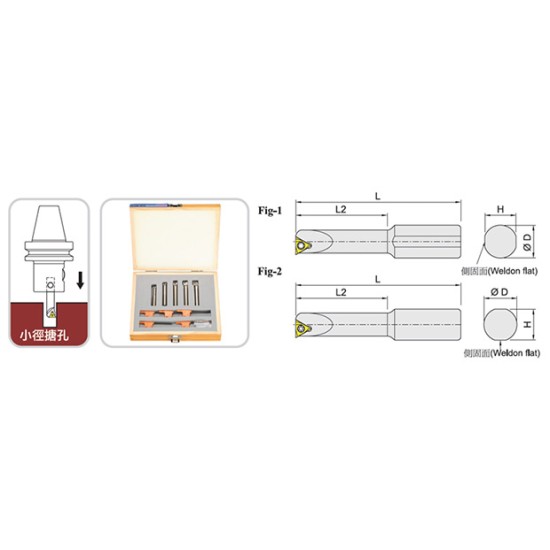

FIG-1 Item code	Fig-2 Item code	Dimensions,mm					Insert	Screw	Wrench	Weight (KG)
FIG-1 Item code	Fig-2 Item code	D	Range	L	L2	H	Insert	Screw	Wrench	Weight (KG)
	BJ10B06-12	10	6-8	64	12	9	WB..0601..	MS2003A	ETF06	0.04
	BJ10B06-24		6-8	64	24		WB..0601..	MS2003A		0.04
BJ1008-32	BJ10B08-32		8-10	72	32		TB..0601..	MS2004A		0.04
BJ1010-40	BJ10B10-40		10-12	77	40		TB..0601..	MS2005A		0.04
BJ1012-45	BJ10B12-45		12-16	77	22		TP..0902..	MS2506A	ETF09	0.05
BJ1016-45	BJ10B16-45		16-20	77	22					0.05
	BJ10B20-45		20-25	77	25					0.05
BJ1020-45			20-25	77	27		TP..1103..	MS3008A		0.05
※BJ10-5PCS		BJ1008-32,BJ1010-40,BJ1012-45,BJ1016-45,BJ1020-45								0.66
※BJ10B-6PCS		BJ10B06-24,BJ10B08-32,BJ10B10-40,BJ10B12-45,BJ10B16-45,BJ10B20-45								0.64

BJ10
