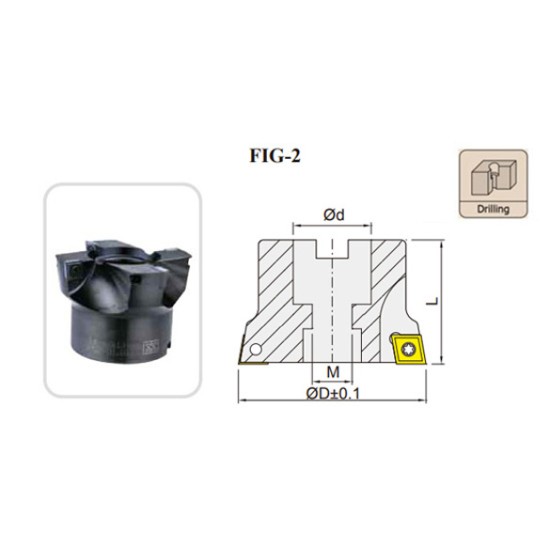

FIG-2 ltem code | Dimensions,mm | Teeth | Insert |
Screw |
Wrench |
Weight (KG) |
|||
---|---|---|---|---|---|---|---|---|---|
D | d | L | M | ||||||
TBP70-25.4-CP09 | 69.8 | 25.4 | 50 | 13 | 4 | CP..090308 | MS4011A | ETF15 | 0.71 |
TBP100-25.4-CP09-4T | 99.8 | 25.4 | 50 | 13 | 4 | CP..090308 | MS4011A | ETF15 | 1.45 |
TBP100-25.4-CP09-6T | 99.8 | 25.4 | 50 | 13 | 6 | CP..090308 | MS4011A | ETF15 | 1.45 |
