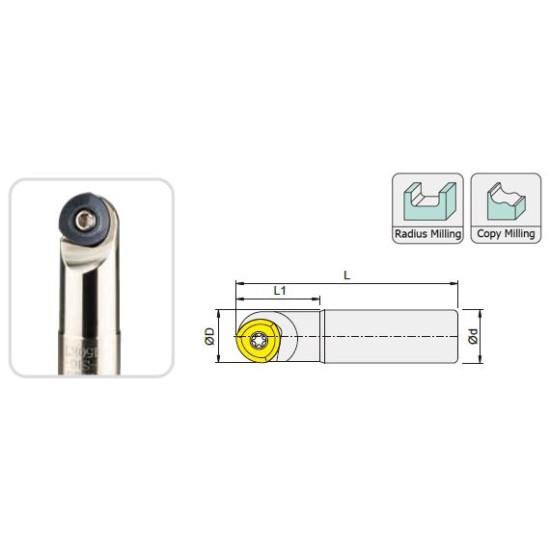

Item code | Dimensions,mm | Teeth | Insert | Screw | Wrench | Weight KG |
|||
---|---|---|---|---|---|---|---|---|---|
D | d | L | L1 | ||||||
SE12-S12-150 | 12 | 12 | 150 | 25 | 1 | QPMT120903-EN21 | MS3008A | ETF09 | 0.13 |
SE12-S16-150 | 12 | 16 | 150 | 35 | 1 | 0.24 | |||
SE12-S16-200 | 12 | 16 | 200 | 35 | 1 | 0.32 | |||
SE16-S16-150 | 16 | 16 | 150 | 35 | 1 | QPMT1612T3-SN21 | MS4009A | ETF15 | 0.24 |
SE16-S16-200 | 16 | 16 | 200 | 35 | 1 | 0.32 | |||
SE16-S20-150 | 16 | 20 | 150 | 35 | 1 | 0.37 | |||
SE16-S20-200 | 16 | 20 | 200 | 35 | 1 | 0.49 | |||
SE20-S20-150 | 20 | 20 | 150 | 40 | 1 | QPMT201504-SN21 | MS4011A | ETF15 | 0.37 |
SE20-S20-200 | 20 | 20 | 200 | 40 | 1 | 0.49 | |||
SE20-S25-200 | 20 | 25 | 200 | 40 | 1 | 0.77 | |||
SE20-S25-250 | 20 | 25 | 250 | 40 | 1 | 0.96 |
