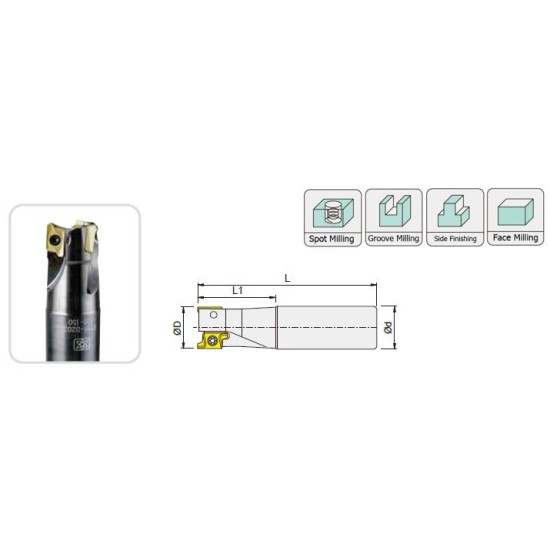

Item code | Dimensions,mm | Teeth | Insert | Spare parts | Weight KG |
||||
---|---|---|---|---|---|---|---|---|---|
無水孔Non coolant | 水孔Coolant | D | d | L | L1 | ||||
RT07-D061-S10-100 | 6 | 10 | 100 | 20 | 1 | RT-0702 .. | ① | 0.06 | |
RT07-D081-S10-100 | 8 | 10 | 100 | 20 | 1 | 0.06 | |||
RT07-D091-S10-100 | 9 | 10 | 100 | 20 | 1 | 0.06 | |||
RT07-D102-S10-100 | RT07-D102-A10-100 | 10 | 10 | 100 | 25 | 2 | 0.06 | ||
RT07-D102-S10-150 | 10 | 10 | 150 | 25 | 2 | 0.09 | |||
RT07-D112-S10-100 | 11 | 10 | 100 | 20 | 2 | 0.06 | |||
RT07-D112-S10-150 | 11 | 10 | 150 | 20 | 2 | 0.09 | |||
RT07-D122-S12-100 | 12 | 12 | 100 | 25 | 2 | RT-0702 .. | ② | 0.09 | |
RT07-D122-S12-150 | RT07-D122-A12-150 | 12 | 12 | 150 | 25 | 2 | 0.13 | ||
RT07-D132-S12-100 | 13 | 12 | 100 | 20 | 2 | 0.09 | |||
RT07-D132-S12-150 | 13 | 12 | 150 | 20 | 2 | 0.13 | |||
RT07-D163-S16-150 | 16 | 16 | 150 | 30 | 3 | 0.24 | |||
RT07-D163-S16-200 | 16 | 16 | 200 | 30 | 3 | 0.32 | |||
RT07-D173-S16-150 | 17 | 16 | 150 | 25 | 3 | 0.24 | |||
RT07-D173-S16-200 | 17 | 16 | 200 | 25 | 3 | 0.32 | |||
RT07-D204-S20-150 | 20 | 20 | 150 | 35 | 4 | 0.37 | |||
RT07-D204-S20-200 | 20 | 20 | 200 | 35 | 4 | 0.49 | |||
RT07-D214-S20-150 | 21 | 20 | 150 | 25 | 4 | 0.37 | |||
RT07-D214-S20-200 | 21 | 20 | 200 | 25 | 4 | 0.49 | |||
RT10-D162-S16-150 | 16 | 16 | 150 | 30 | 2 | RT-1003.. | ③ | 0.24 | |
RT10-D162-S16-200 | 16 | 16 | 200 | 30 | 2 | 0.32 | |||
RT10-D172-S16-150 | 17 | 16 | 150 | 25 | 2 | 0.24 | |||
RT10-D172-S16-200 | 17 | 16 | 200 | 25 | 2 | 0.32 | |||
RT10-D202-S20-150 | 20 | 20 | 150 | 35 | 2 | 0.37 | |||
RT10-D202-S20-200 | 20 | 20 | 200 | 35 | 2 | 0.49 | |||
RT10-D203-S20-150 | RT10-D203-A20-150 | 20 | 20 | 150 | 35 | 3 | 0.37 | ||
RT10-D203-S20-200 | 20 | 20 | 200 | 35 | 3 | 0.49 | |||
RT10-D212-S20-150 | 21 | 20 | 150 | 30 | 2 | 0.37 | |||
RT10-D212-S20-200 | 21 | 20 | 200 | 30 | 2 | 0.49 | |||
RT10-D213-S20-150 | 21 | 20 | 150 | 30 | 3 | 0.37 | |||
RT10-D213-S20-200 | 21 | 20 | 200 | 30 | 3 | 0.49 | |||
RT10-D252-S25-150 | 25 | 25 | 150 | 40 | 2 | 0.58 | |||
RT10-D252-S25-200 | 25 | 25 | 200 | 40 | 2 | 0.77 | |||
RT10-D253-S25-150 | 25 | 25 | 150 | 40 | 3 | 0.58 | |||
RT10-D253-S25-200 | 25 | 25 | 200 | 40 | 3 | 0.77 | |||
RT10-D253-S25-250 | 25 | 25 | 250 | 40 | 3 | 0.96 | |||
RT10-D262-S25-150 | 26 | 25 | 150 | 30 | 2 | RT-1003.. | ③ | 0.58 | |
RT10-D262-S25-200 | 26 | 25 | 200 | 30 | 2 | 0.77 | |||
RT10-D263-S25-150 | 26 | 25 | 150 | 30 | 3 | 0.58 | |||
RT10-D263-S25-200 | 26 | 25 | 200 | 30 | 3 | 0.77 | |||
RT10-D263-S25-250 | 26 | 25 | 250 | 30 | 3 | 0.96 | |||
RT10-D324-S32-150 | 32 | 32 | 150 | 40 | 4 | 0.95 | |||
RT10-D324-S32-200 | 32 | 32 | 200 | 40 | 4 | 1.26 | |||
RT10-D324-S32-250 | 32 | 32 | 250 | 40 | 4 | 1.58 | |||
RT10-D324-S32-300 | 32 | 32 | 300 | 40 | 4 | 1.89 | |||
RT10-D325-S32-150 | 32 | 32 | 150 | 40 | 5 | 0.95 | |||
RT10-D325-S32-200 | 32 | 32 | 200 | 40 | 5 | 1.26 | |||
RT10-D325-S32-250 | 32 | 32 | 250 | 40 | 5 | 1.58 | |||
RT10-D325-S32-300 | 32 | 32 | 300 | 40 | 5 | 1.89 | |||
RT10-D334-S32-150 | 33 | 32 | 150 | 35 | 4 | RT-1003.. | ③ | 0.95 | |
RT10-D334-S32-200 | 33 | 32 | 200 | 35 | 4 | 1.26 | |||
RT10-D334-S32-250 | 33 | 32 | 250 | 35 | 4 | 1.58 | |||
RT10-D334-S32-300 | 33 | 32 | 300 | 35 | 4 | 1.89 | |||
RT10-D335-S32-150 | 33 | 32 | 150 | 35 | 5 | 0.95 | |||
RT10-D335-S32-200 | 33 | 32 | 200 | 35 | 5 | 1.26 | |||
RT10-D335-S32-250 | 33 | 32 | 250 | 35 | 5 | 1.58 | |||
RT10-D335-S32-300 | 33 | 32 | 300 | 35 | 5 | 1.89 | |||
RT10-D354-S32-150 | 35 | 32 | 150 | 35 | 4 | 0.95 | |||
RT10-D354-S32-200 | 35 | 32 | 200 | 35 | 4 | 1.26 | |||
RT10-D354-S32-250 | 35 | 32 | 250 | 35 | 4 | 1.58 | |||
RT10-D354-S32-300 | 35 | 32 | 300 | 35 | 4 | 1.89 | |||
RT10-D355-S32-150 | 35 | 32 | 150 | 35 | 5 | 0.95 | |||
RT10-D355-S32-200 | 35 | 32 | 200 | 35 | 5 | 1.26 | |||
RT10-D355-S32-250 | 35 | 32 | 250 | 35 | 5 | 1.58 | |||
RT10-D355-S32-300 | 35 | 32 | 300 | 35 | 5 | 1.89 |
