Item code | Dimensions,mm | Teeth | Insert | Screw | Wrench | Weight KG |
|||
---|---|---|---|---|---|---|---|---|---|

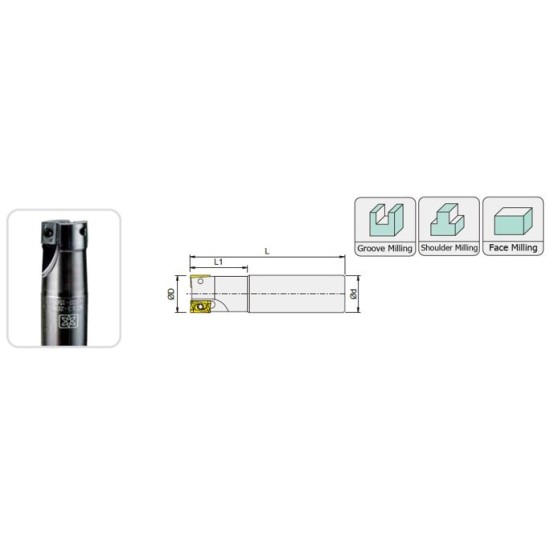

D | d | L | L1 | ||||||
MEA3-121-S12-120 | 12 | 12 | 120 | 25 | 1 | NDKW090304ER | MS2506A | ETF09 | 0.11 |
MEA3-141-S16-100 | 14 | 16 | 100 | 28 | 1 | 0.16 | |||
MEA3-141-S16-150 | 150 | 0.24 | |||||||
MEA3-162-S16-200 | 16 | 16 | 200 | 30 | 2 | 0.32 | |||
MEA3-172-S16-150 | 17 | 16 | 150 | 20 | 2 | 0.24 | |||
MEA3-172-S16-200 | 200 | 0.32 | |||||||
MEA3-182-S20-150 | 18 | 20 | 150 | 30 | 2 | 0.37 | |||
MEA3-182-S20-200 | 200 | 0.49 | |||||||
MEA3-212-S20-150 | 21 | 20 | 150 | 25 | 2 | 0.37 | |||
MEA3-212-S20-200 | 200 | 0.49 | |||||||
MEA3-213-S20-150 | 21 | 20 | 150 | 25 | 3 | 0.37 | |||
MEA3-213-S20-200 | 200 | 0.49 | |||||||
MEA3-263-S25-150 | 26 | 25 | 150 | 35 | 3 | 0.58 | |||
MEA3-263-S25-200 | 200 | 0.77 |
