Name: F151.23
Brand: 三井 益詮 梅華
Availability: InStock

F151.23

數量

加入購物車

立即購買問問題

商品收藏商品比較

Item code	Dimensions,mm					Width W(mm)	Insert	Screw	Wrench	Weight (KG)

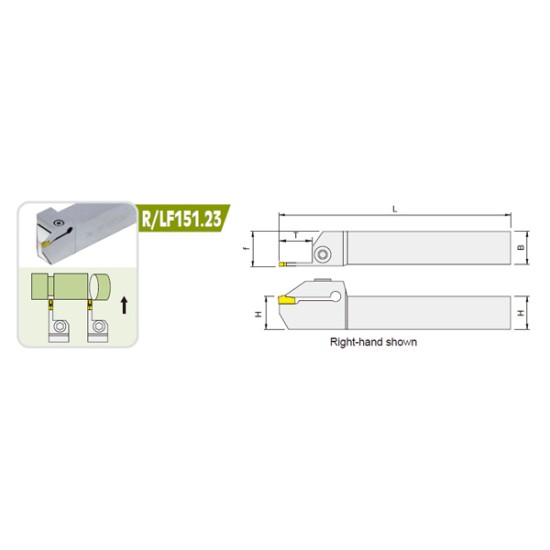

Item code	H (H1)	B	L	F	T	Width W(mm)	Insert			Weight (KG)
R/LF151.23-1616K-20M1	16	16	125	16.00	15	2.0	N151.2-200-5E	HTMT520	ETL25	0.27
R/LF151.23-2020K-20M1	20	20	125	20.00				HTMT525		0.42
R/LF151.23-2525M-20M1	25	25	150	25.00				HTMT525		0.78
R F151.23-1616K-25T10	16	16	125	15.75	10	2.5	N151.2-250-5E	HTMT520		0.27
R F151.23-2020K-25T10	20	20	125	19.75				HTMT525		0.42
R F151.23-2525M-25T10	25	25	150	24.75				HTMT525		0.78
R F151.23-1616K-25M1	16	16	125	15.75	20	2.5		HTMT520		0.27
R F151.23-1616K-30T10	16	16	125	15.50	10	3.0	N151.2-300-5E	HTMT520		0.27
R F151.23-2020K-30T10	20	20	125	19.50				HTMT525		0.42
R F151.23-2525M-30T10	25	25	150	24.50				HTMT525		0.78
R/LF151.23-1616K-30M1	16	16	125	15.50	20	3.0		HTMT520		0.27
R/LF151.23-2020K-30M1	20	20	125	19.50				HTMT525		0.42
R/LF151.23-2525M-30M1	25	25	150	24.50				HTMT525		0.78

F151.23
